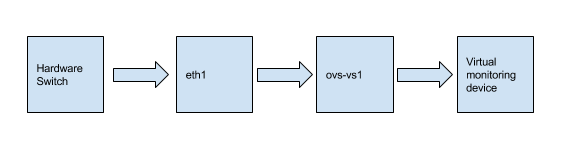

In the last few years I have moved all of my virtualization to proxmox and docker. Seeing as I like to look at packets because I am a closet security guy, and being as I have been working off-and-on on a security project in recent times, I wanted to be able to span a port not only from a hardware switch, but also within my software switches. I had been using linux bridge, which I am not a fan of, so when I started down this path I did not look hard to find a way to do so under that platform. Instead I used it as an opportunity to move some of the internal bridges to OpenVSwitch. I wanted to create an OVS span port internally. I had experience with OVS in the past for SDN work that I was doing, but I had never created a mirror port. I briefly thought about using OpenFlow to do it, but the unnecessary complexity was off putting. Instead I chose to create a simple mirror of a span port from my switch. So, traffic flow goes as such:     This was fairly trivial, and I was seeing packets in no time. I’m not going to go through creating an OVS bridge in proxmox, there are lots of documents on how to do that. Once you have your switch port SPAN up and running, and the physical interface in the OVS bridge, you essentially just need to add the following: Create the mirror``` ovs-vsctl – –id=@m create mirror name=span – add bridge vmbr1 mirrors @m

ovs-vsctl set mirror span select\_src\_port=@eth1 select\_dst\_port=@eth1

You can also do this with the UUID``` ovs-vsctl set mirror span select_src_port=42dbd5a9-27c6-4f1b-958b-943f67b6801b select_dst_port=42dbd5a9-27c6-4f1b-958b-943f67b6801b

ovs-vsctl -- --id=@veth100i9 get port veth100i9 -- set mirror span output-port=@veth100i9

And that’s it. Log into your host and do a tcpdump on whatever interface is mapped to veth100i9 and you should see packets flowing. A few tips:

• Verify your span from the hardware switch is working before diving into the software stack.
• If you’re doing this is proxmox, be aware that proxmox networking stack can be unforgiving when you much around outside of their environment.
• This will not persist across reboots. Add it to /etc/network/interfaces manually to keep it after a restart.
